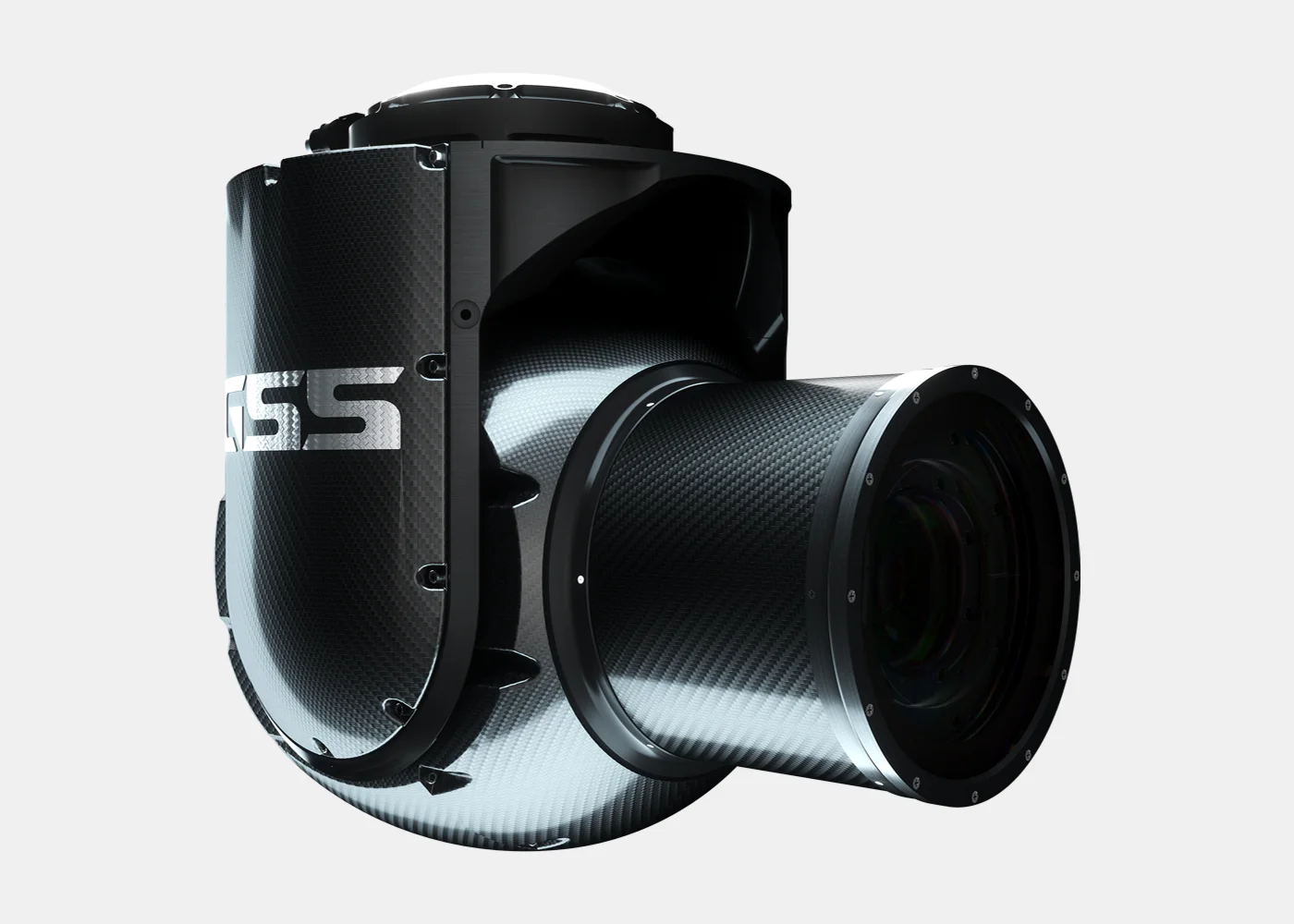

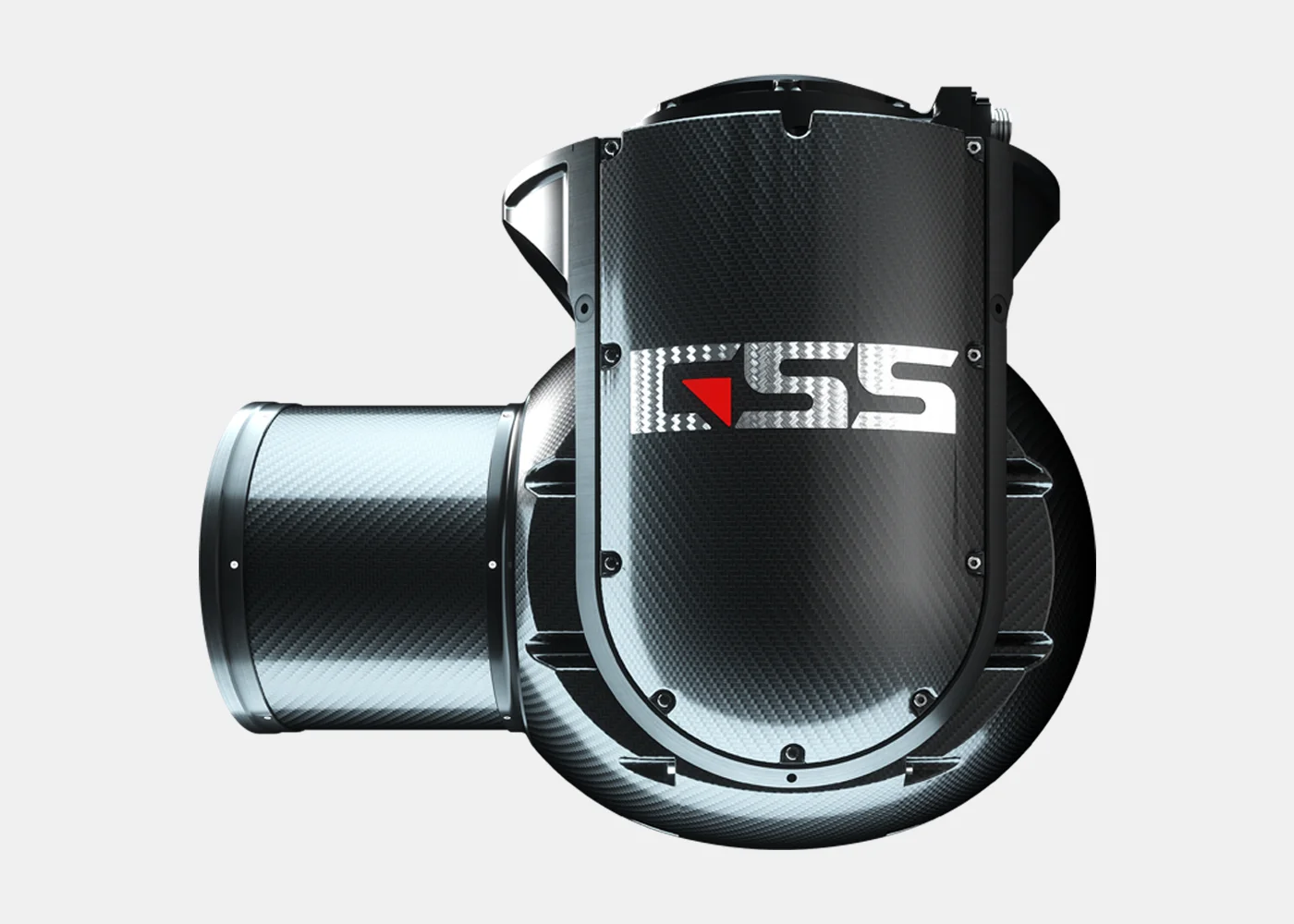

The Cineflex Pro+ (formerly the B516) is the best stabilized platform option for larger, broadcast payloads. With five-axis stabilization in our largest platform, this gimbal can handle the largest broadcast cameras and lenses used by major-market ENG clients!





System Features

  • 5-axis advanced fiber optic gyro-stabilization
  • VectorSteeringTM look-down capability with no gimbal lock
  • Geo-pointing with moving map interface option
  • Continuous digital zoom through 10X
  • Isolated electronics eliminates video noise
  • Fully upgradeable as gimbal, camera, and lens technologies evolve
  • No auxiliary junction unit required
  • Stabilized or steerable horizon with in-flight automatic calibration
  • No ITAR or EAR export restrictions
  • Ships as excess baggage (<70lbs/32kg per case)
  • MIL-STD-810F power filters with reverse polarity protection
  • Independent Structural Analysis IAW FAA 14 CFR 23.337, 25.337, 27.337, & 29.337 at 200 knots
  • Engineered/Manufactured to DO-160G standards - not certified
  • Platform designed for both standard and inverted use
  • GroundControlTM wireless, bi-directional, gimbal control option
  • Metadata outputs (lens, camera, & GPS functions)
  • Remote controlled optical filter system
  • Electro-mechanical gimbal stow mechanism
  • Compatible with existing air and ground mounts
  • Standard 1-year warranty and 24/7/365 customer service

Product Accessories

R44 Mount

R66 Mount

Power Distribution Unit

ground power supply

video breakout box

aux box

Power Cable

Laptop cable

fiber video cable

broadcast lens kit

broadcast ike

broadcast laptop

vibration iso (taper)

vibration iso (universal)

snout cover

power disruption unit



System Specs

Gimbal Performance
5-axis advanced fiber optic gyro-stabilization Azimuth: 360° continuous
Elevation: 27° to -195° from horizontal Roll: +/- 90° (steerable/stabilized)
Gimbal slew rate: 0-150°/second Max operational airspeed: 200 knots - certified to FAA 14CFR requirements, increased airspeeds possible

Interface
Control: RS-232, RS-422, or Ethernet

Electrical
VIN: 18-33 VDC
Power: 15 amps max draw at 28 VDC

Dimensions
Gimbal width: 16 inches (406 mm) Gimbal height: 19.5 inches (495 mm) Snout length: 0-6 inches (0-152 mm) Cable set length: 20 - 100 feet

Weight
Platform: 60 lbs (27.2 kg) + payload Laptop Control Unit: 7 lbs (3.2 kg) Auxiliary Junction Unit: payload specific Cable Set: 8 lbs (3.6 kg)

Environmental
Operating temperature: -4° to +122°F (-20° to +50°C) Sealed system for airborne/ground/marine applications

Camera/Lens Payload Options
Sony HDC-P1 & HDC-P43
Ikegami HDL-F3000 Low-Light
Grass Valley LDX Compact HD/4K Panasonic AK-UB300 4K
Canon ME20F-SH Low-Light
Sony PMW-F55 with PL/B4 Adapter NEC NC-H1200S
Other cameras available upon request *

Interchangeable Lens Options
Canon HJ Series HD/4K
Fujinon HA Series HD/4K
Other lenses available upon request *

Helicopter/Airplane Mount Availability
AS 350/355 Bell 206/206L/407 Bell 505 EC-120 Robinson R44/R66 Cessna 172/206 Compatible with various other aircraft *

Vehicle/Marine Mount Configurations
Arm Mounts Mitchell Mount
Various other mount types from many manufacturers *

* Specifications are subject to change
