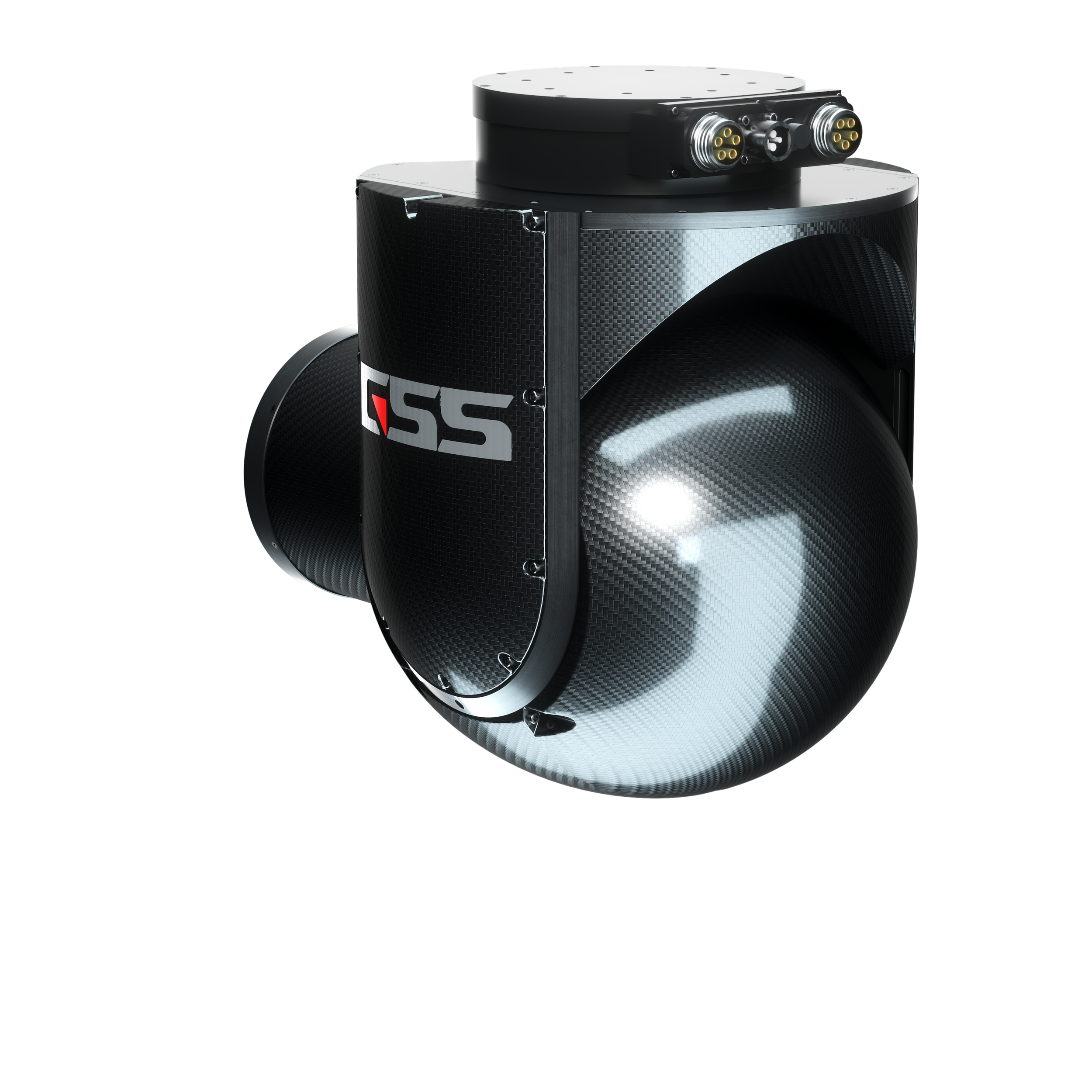

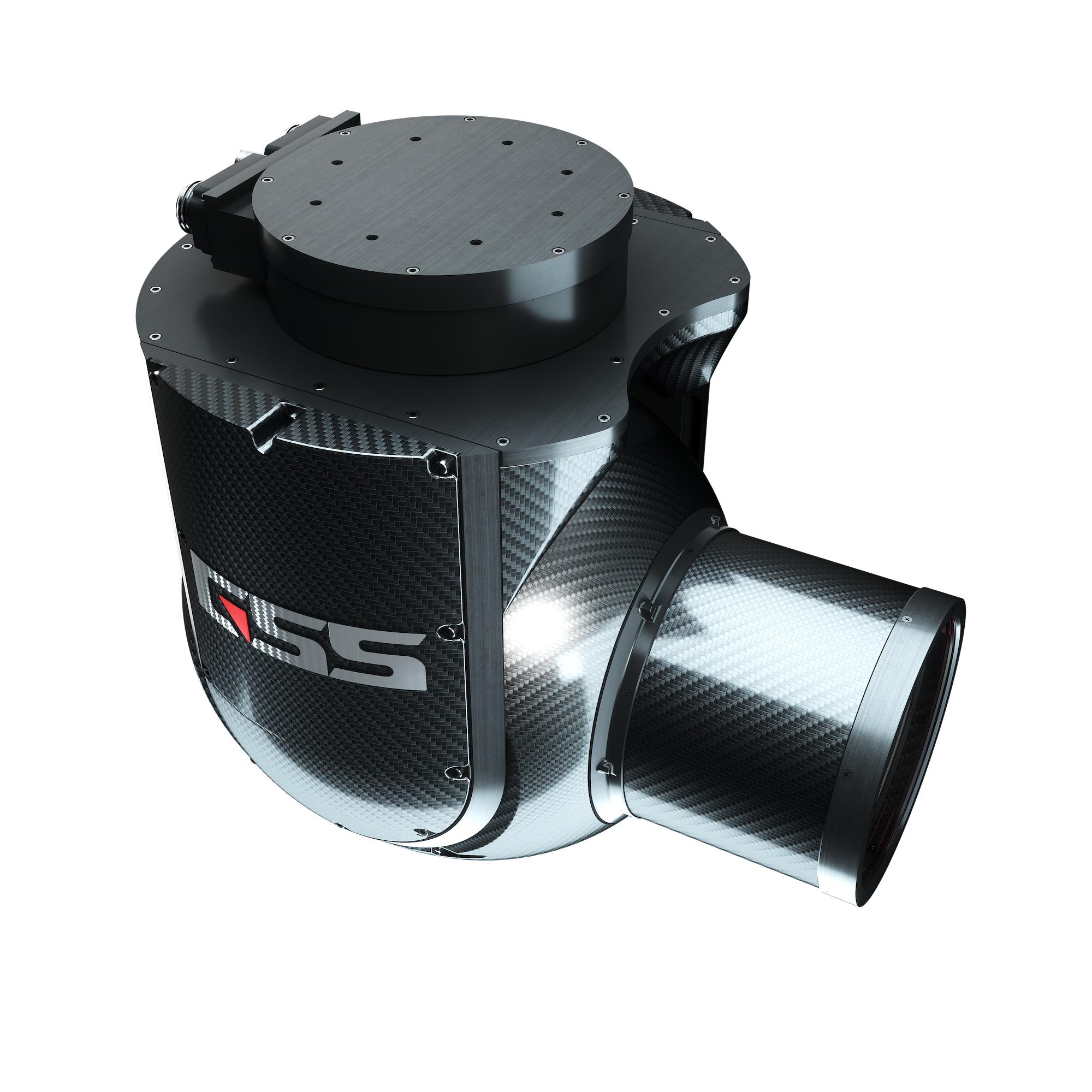

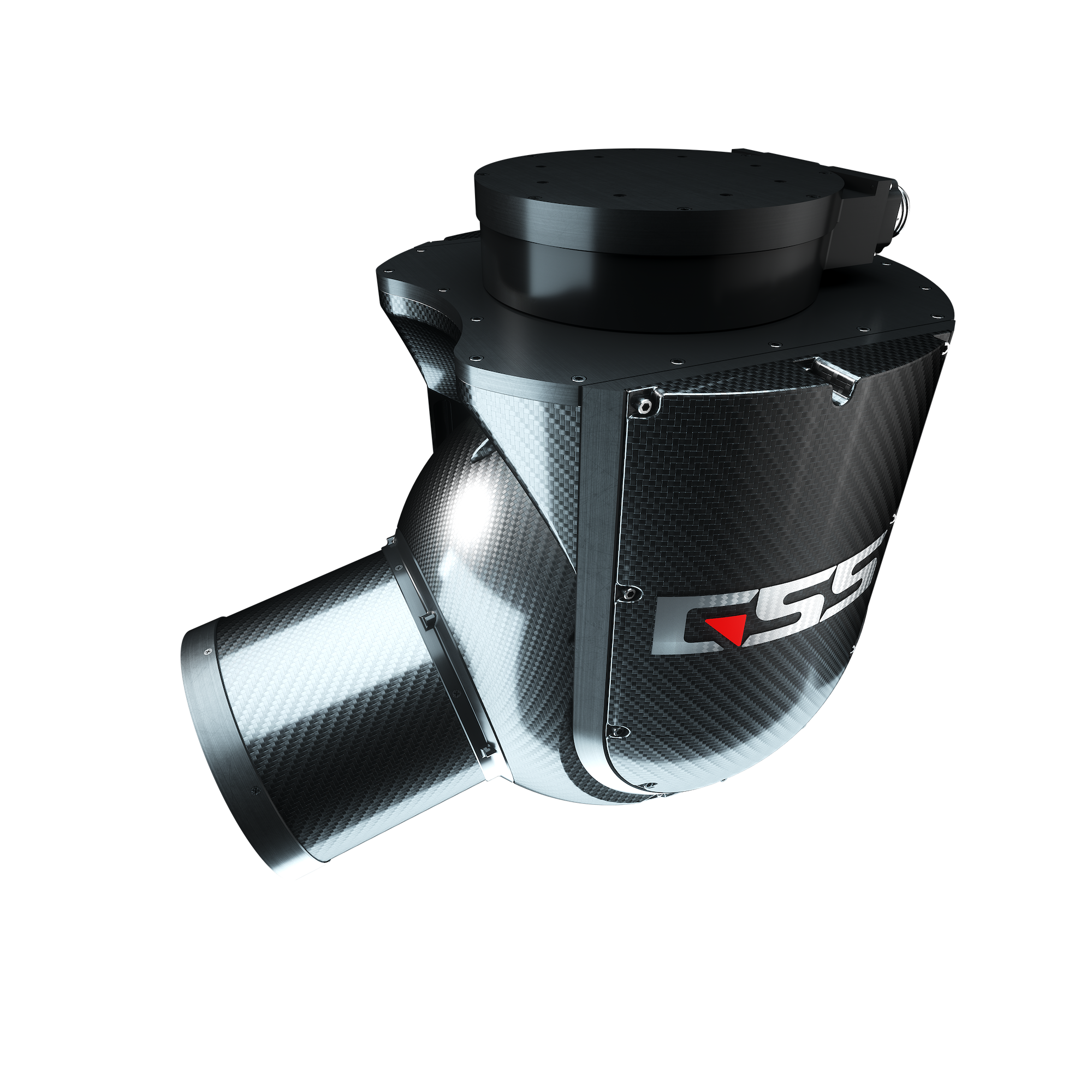

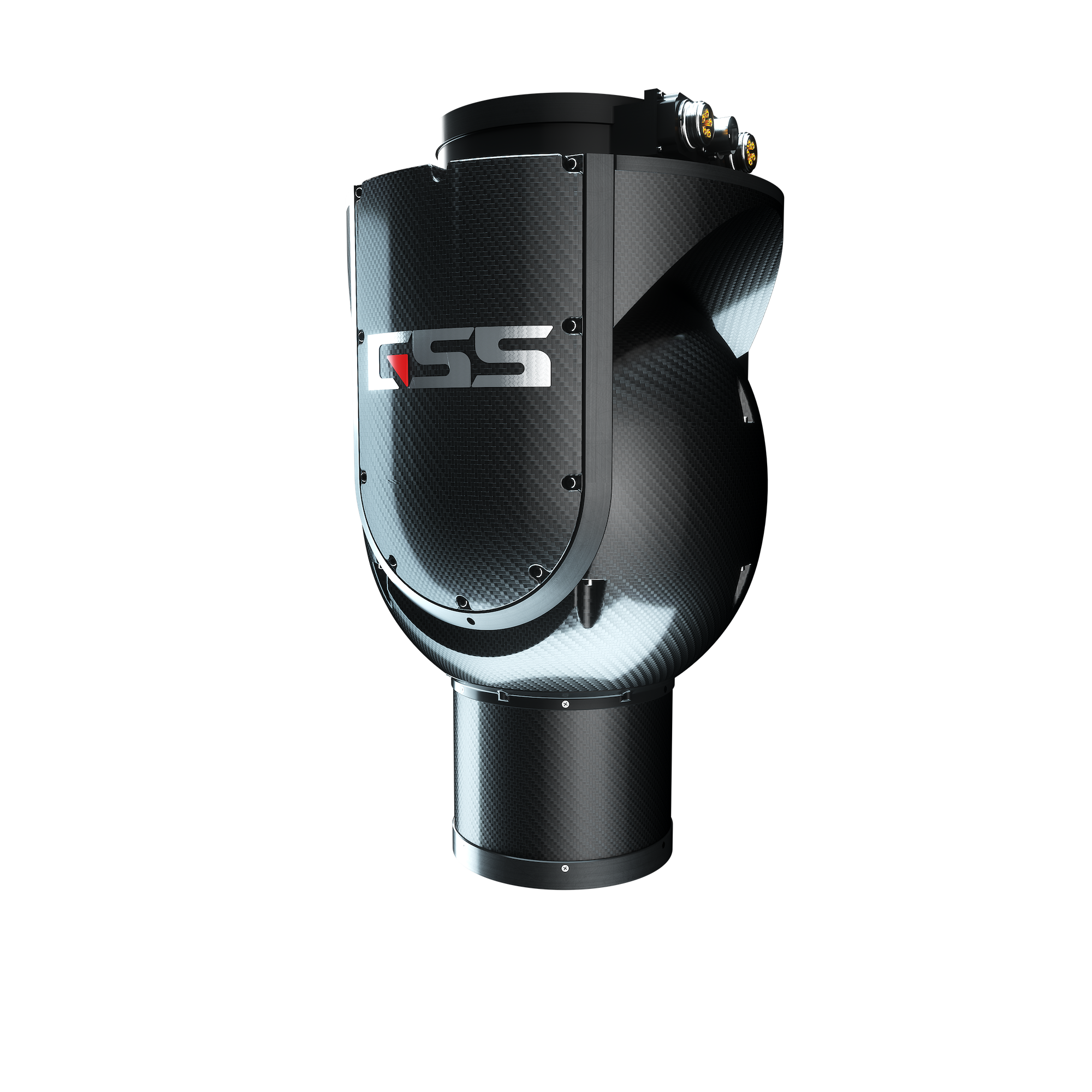

Cinema Mini 512

The Cinema Mini 512, <50lbs (22 kg) with payload, is the ideal gimbal platform for light aircraft such as the Guimbal Cabri G2 and R44, or vehicle and marine mounts, when larger camera and lens payloads are not required.

This small and light system has all the performance features of other GSS systems, including stabilized look-down. As with all GSS gimbals, the Cinema Mini 512 is well-suited for a variety of applications including aerial, ground vehicle, marine mounted and more.





System Features

  • Advanced fiber optic gyro-stabilization

  • VectorSteering™ 6-axes of movement in a 5-axis gimbal

    • Stabilized look down (no gimbal lock) in a smaller, lighter package

  • Geo-pointing with moving map interface option

  • Continuous digital zoom through 10x (camera dependent)

  • Isolated electronics eliminates video noise

  • Fully upgradeable as gimbal, camera, and lens technologies evolve

  • No auxiliary junction unit required

  • Stabilized or steerable horizon with in-flight automatic calibration

  • No ITAR or EAR export restrictions

  • Ships as excess baggage (<70lbs/32kg per case)

  • MIL-STD-810F power filters with reverse polarity protection

  • Engineered/Manufactured to DO-160G standards - not certified

  • Platform designed for both standard and inverted use

  • Wireless capability option

  • Metadata outputs (lens, camera, & GPS functions)

  • Remote controlled optical filter system

  • Electro-mechanical gimbal stow mechanism

  • Compatible with existing air and ground mounts

  • Standard 1-year warranty and 24/7/365 customer service

Product Accessories

Cinema Mini Baggage Case

rain deflector

power distribution unit

video breakout box

cinema hand controller

fiz remote

ground power supply

fiber video cable

hand controller cable

power cable

Schneider optics snout glass

nd filter

snout cover

aircraft battery disruption unit

vibration iso (taper)

vibration iso (universal)

mitchell mount adapter

R44 Mount

R66 Mount

portable gimbal stand accessibility and maintenance for GSS gimbals

spider stand

GIMBAL LEGS



System Specs

Gimbal Performance
VectorSteering™ offers 6-axes of movement in a 5-axis gimbal – gyro-stabilized
Azimuth: 360° continuous
Elevation: 35° to -210° from horizontal
Roll: > +/- 90° (steerable/stabilized)
Gimbal slew rate: 0-130°/second (depending on gearbox)
Max operational airspeed: variable depending on gearbox

Interface
Control: RS-232, RS-422, or Ethernet

Electrical
VIN: 18-33 VDC
Power: 15 amps max draw at 28 VDC

Dimensions
Gimbal width: 13.8 inches (351 mm)
Gimbal height: 19.4 inches (493 mm)
Snout length: 0-6 inches (0-152 mm)
Cable set length: 20 feet (standard set)

Weight
Platform: <50lbs (22 kg) + payload
Hand Controller Unit: 7 lbs (3.2 kg)
Auxiliary Junction Unit: payload specific
Cable Set: 8 lbs (3.6 kg)

Environmental
Operating temperature: -4° to +122°F (-20° to +50°C) Sealed system for airborne/ground/marine applications

Interchangeable Camera Options
RED Komodo / RED DSMC3
Ikegami HDL-F4000
Phase One iXM100/150
Mirrorless Cameras (Sony, Canon, Nikon, Fuji)
Other cameras available upon request

Interchangeable Lens Options
Canon CINE-SERVO 25-250mm
Canon CINE-SERVO 17-120
Fujinon Cabrio 20-120mm
Fujinon Premista 28-100mm/80-250
Other lenses available upon request

Helicopter/Airplane Mount Availability
AS 350/355 Bell 206/206L/407 EC-120
Robinson R44/R66
Cessna 172/206
Guimbal Cabri G2
(Also compatible with various other aircraft)

Vehicle/Marine Mount Configurations
Arm Mounts - Mitchell Mount
Various other mount types from many manufacturers

Specifications are subject to change.

camera & lens configuration

  • All weights are shown in pounds
