Cinema Pro 516

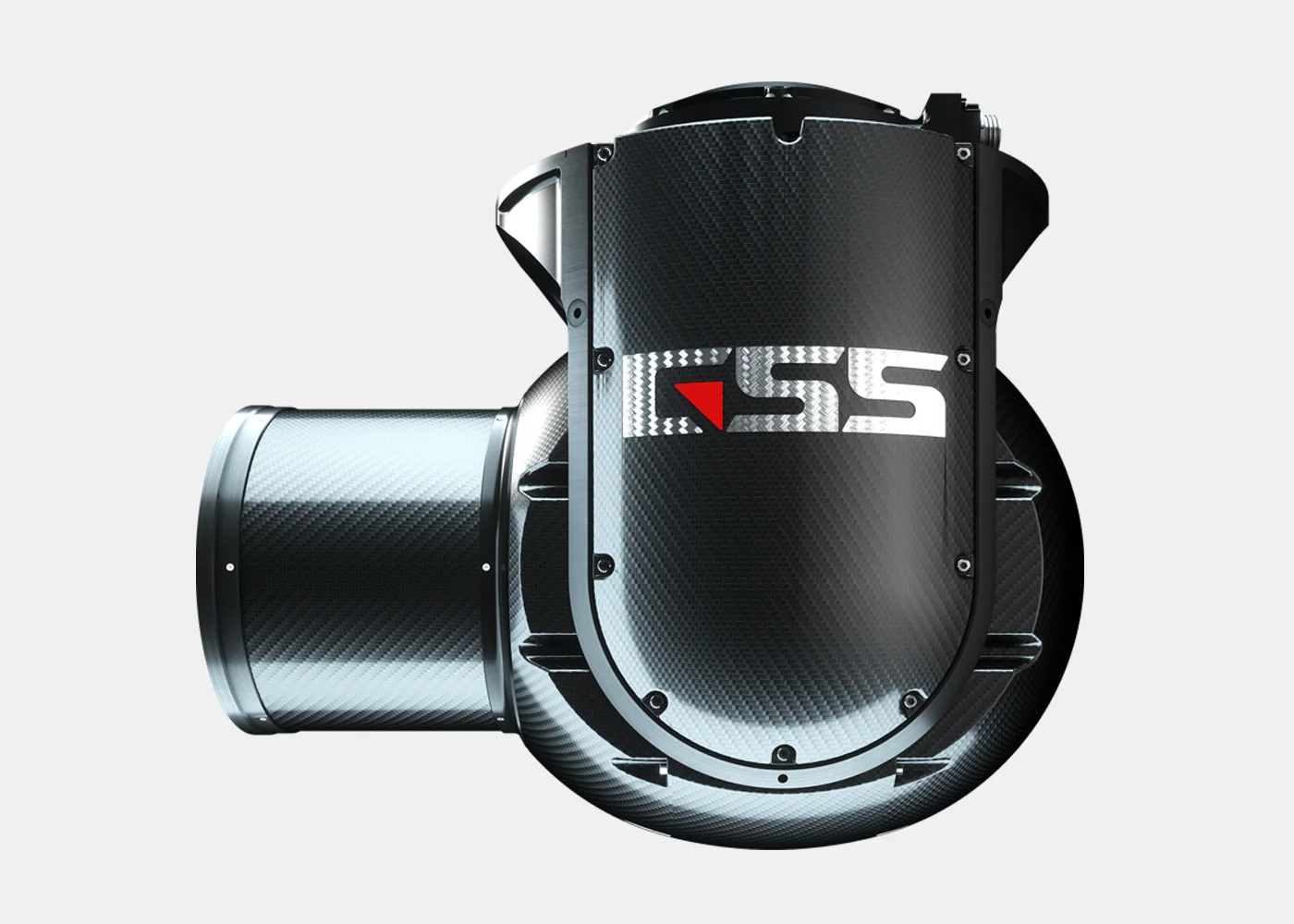

Perfect for use in almost any scenario, the Cinema Pro 516 is the best stabilized platform option to integrate the most popular payloads. With 6-axes of movement via VectorSteering™ in a mid-sized platform, this gimbal can easily handle medium-sized cinema cameras with impressive lenses! As with all GSS gimbals, the Cinema Pro 516 is well-suited for a variety of applications including aerial, ground vehicle, marine mounted and more.





System Features

  • Advanced fiber optic gyro-stabilization

  • VectorSteering™ 6-axes of movement in a 5-axis gimbal

    • Stabilized look down (no gimbal lock) in a smaller, lighter package

  • Interchangeable cameras/lenses/inner-axis in less than 30 minutes

  • Fully upgradeable as gimbal, camera, and lens technologies evolve

  • Stabilized or steerable horizon with in-flight automatic calibration

  • High-speed fiber optic video data transfer

  • No auxiliary junction unit required

  • No ITAR or EAR export restrictions

  • Ships as excess baggage (<70lbs/32kg per case)

  • MIL-STD-810F power filters with reverse polarity protection

  • Engineered/Manufactured to DO-160G standards - not certified

  • Platform designed for both standard and inverted use

  • Wireless capability option

  • Metadata outputs (lens, camera, & GPS functions)

  • Geo-referencing option

  • Electro-mechanical gimbal stow mechanism

  • Compatible with existing air and ground mounts

  • Standard 1-year warranty and 24/7/365 customer service

Product Accessories


power distribution unit

GSS-Video-Breakout-Box (6-CH:4K)-1.jpg

video breakout box


ground power supply


rain deflector

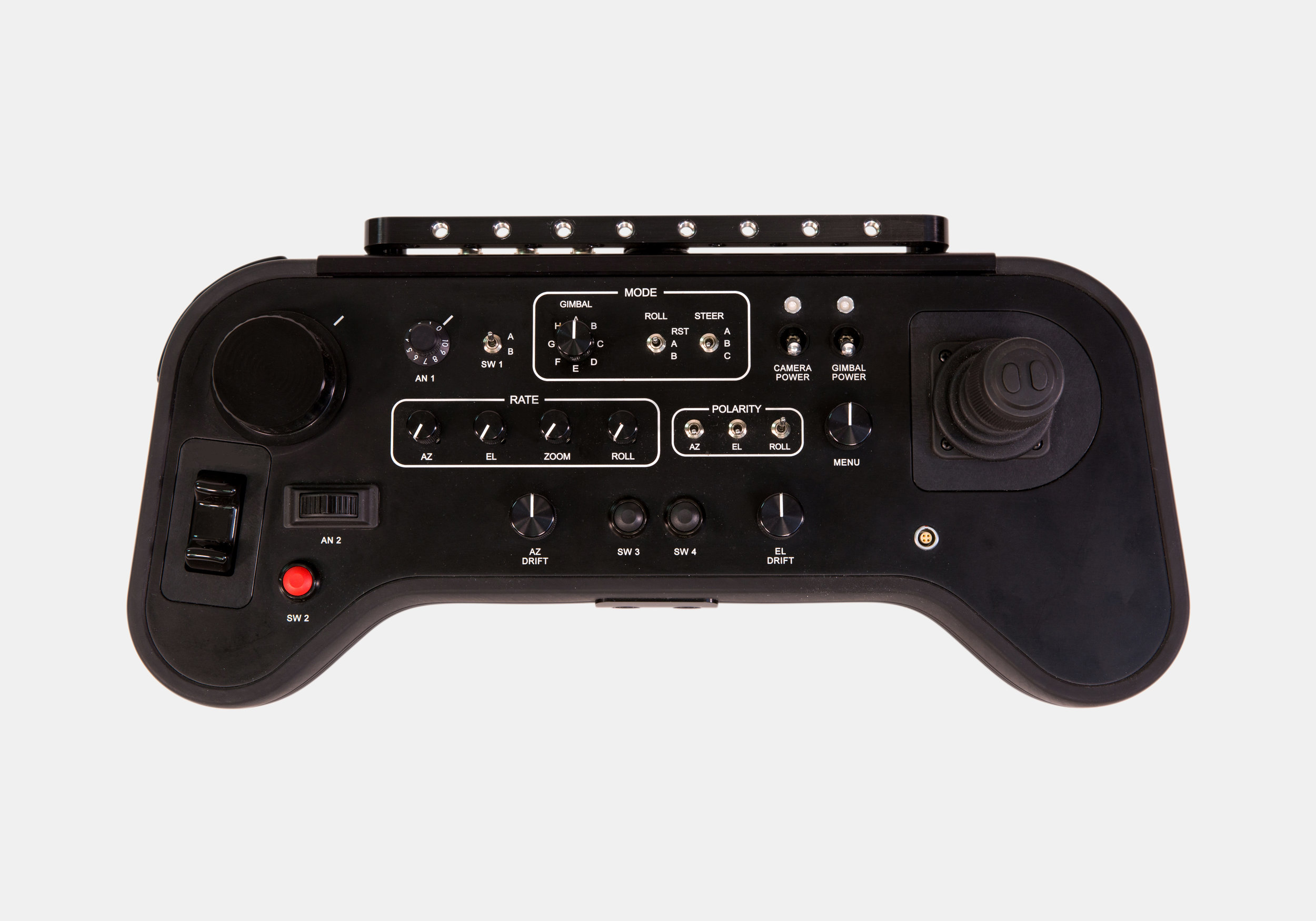

cinema hand controller


fiz remote


hand controller cable

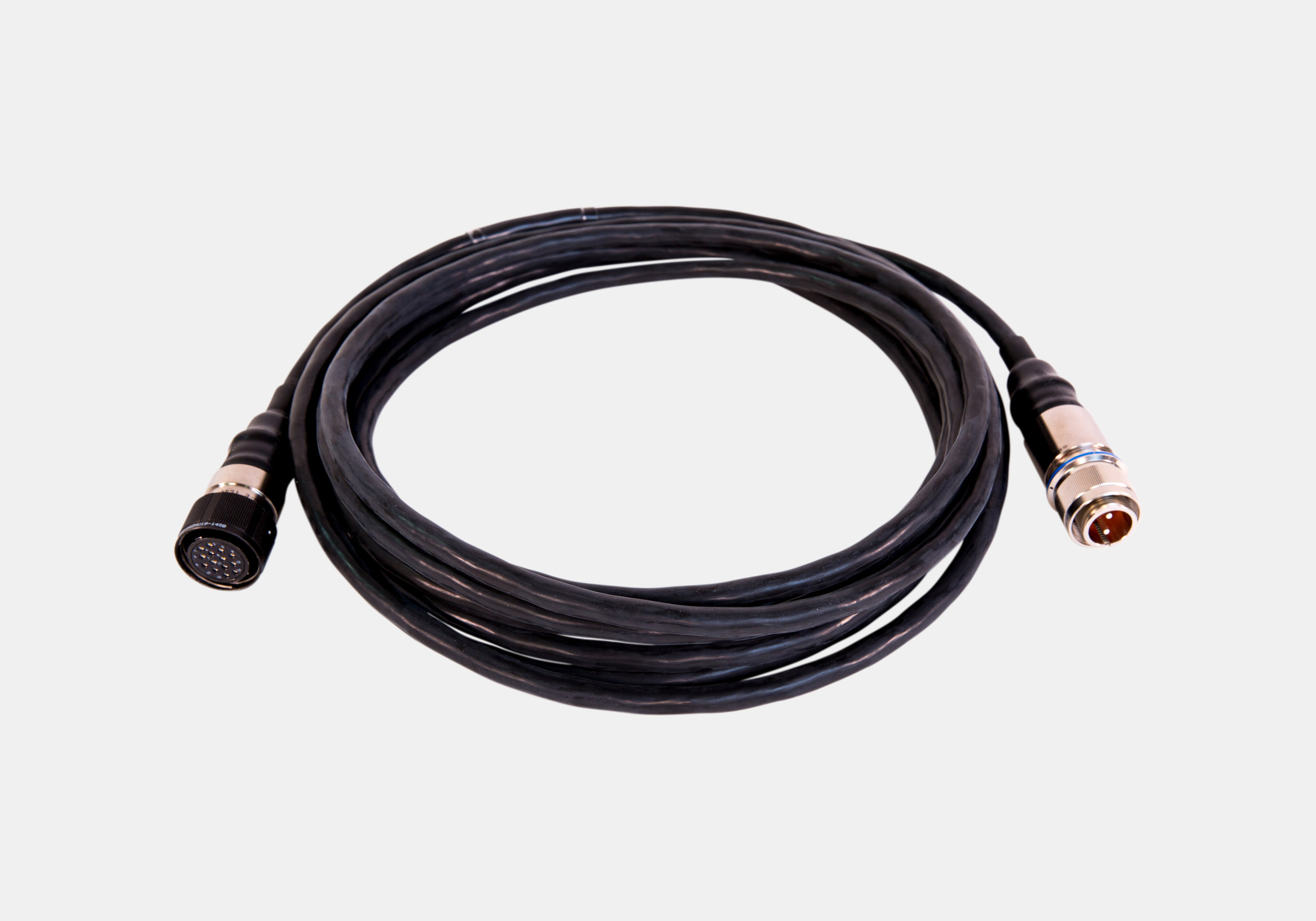

power cable


fiber video cable


schneider optics snout glass


nd filter

snout cover


aircraft battery disruption unit

vibration iso (taper)


vibration iso (universal)


mitchell mount adapter


R44 Mount


R66 Mount

Portable gimbal stand for all GSS gimbal configurations

spider stand

GIMBAL LEGS



System Specs

Gimbal Performance
VectorSteering™ offers 6-axes of movement in a 5-axis gimbal - gyrostabilized
Azimuth: 360°continuous
Elevation: 27° to -195° from horizontal
Roll: > +/- 120° (steerable/stabilized)
Gimbal Slew Rate: 0-150°/second (depending on gearbox)
Max Operational Airspeed: variable depending on gearbox

Interface
Control: RS-232, RS-422, or Ethernet

Electrical
VIN: 18-33 VDC
Power: 15 amps max draw at 28 VDC

Dimensions
Gimbal width: 16.5 inches (419 mm)
Gimbal height: 21.4 inches (544 mm)
Snout length: 0-6 inches (0-152 mm)
Cable set length: 20 feet (standard set)

Weight
Platform: 60 lbs (27.2 kg) + payload
Hand Controller Unit: 7 lbs (3.2 kg)
Auxiliary Junction Unit: payload specific
Cable Set: 8 lbs (3.6 kg)

Environmental
Operating temperature: -4° to +122°F (-20° to +50°C) Sealed system for airborne/ground/marine applications

Interchangeable Camera Options
Sony Venice, PMW-F55, HDC-P1, HDC-P43 & HDC-P50
RED DSMC2
Arri Alexa XT M & Arri Alexa Mini
(Other cameras available upon request.)

Interchangeable Lens Options
Angenieux Optimo 10:1 & Optimo wide zooms
Canon Cinema Series
Fujinon Premiere PL/Cabrio Series
Arri Ultra Wide Zoom 9.5-18
Primes - Various
B4 mount ENG lenses (limited to payload compatibility) Other lenses available upon request

Helicopter/Airplane Mount Availability
AS 350/355
Bell 206/206L/407
Bell 505 EC-120
Robinson R44/R66
Cessna 172/206
Compatible with various other aircraft

Vehicle/Marine Mount Configurations
Arm Mounts - Mitchell Mount
Various other mount types from many manufacturers

Specifications are subject to change.
