utility 416



Get up to four sets of data on a single flight with the highest performing, 4-axis stabilization platform housing the most powerful cameras on the market.




Maximize inspection efficiency and flexibility with the U416 capable of housing up to four sensors as well as cameras with long focal length.

Perfect for markets including:

  • Power line inspection

  • Gas leak detection

  • Pipeline inspection

  • Public safety

  • Aerial surveying and mapping







System Features

  • Advanced fiber optic gyro-stabilization

  • 4-axis gimbal - gyro-stabilized

  • Fully upgradeable as gimbal, camera, and lens technologies evolve

  • High-speed fiber optic video data transfer

  • No ITAR export restrictions

  • MIL-STD-810F power filters with reverse polarity protection

  • Engineered/Manufactured to DO-160G standards - not certified

  • Metadata outputs (lens, camera, & GPS functions)

  • Electro-mechanical gimbal stow mechanism

  • Standard 1-year warranty and 24/7/365 customer service




Product Accessories

geopro™ ins

power distribution unit

video breakout box

ground power supply

fiber video cable

hand controller cable

power cable

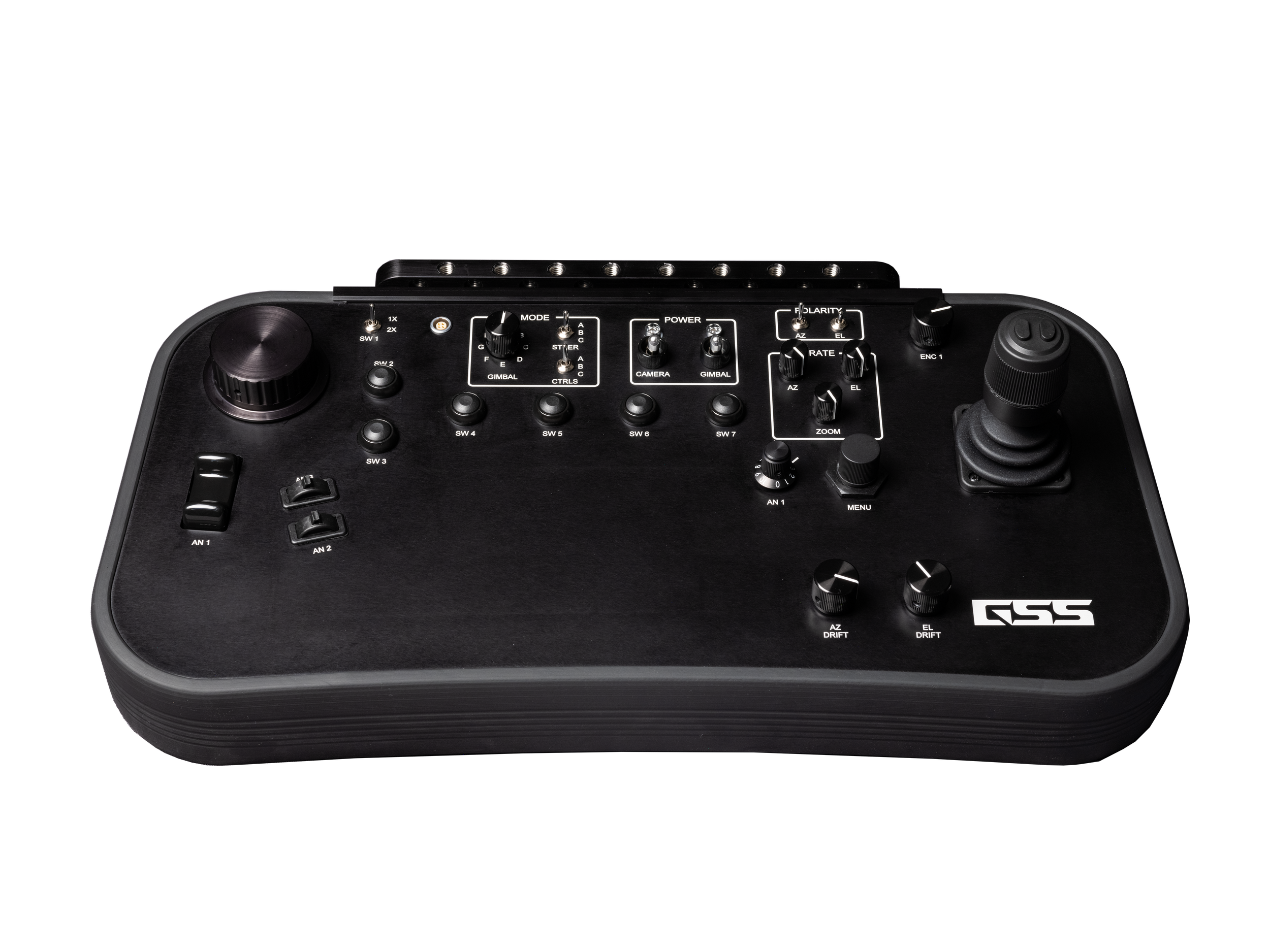

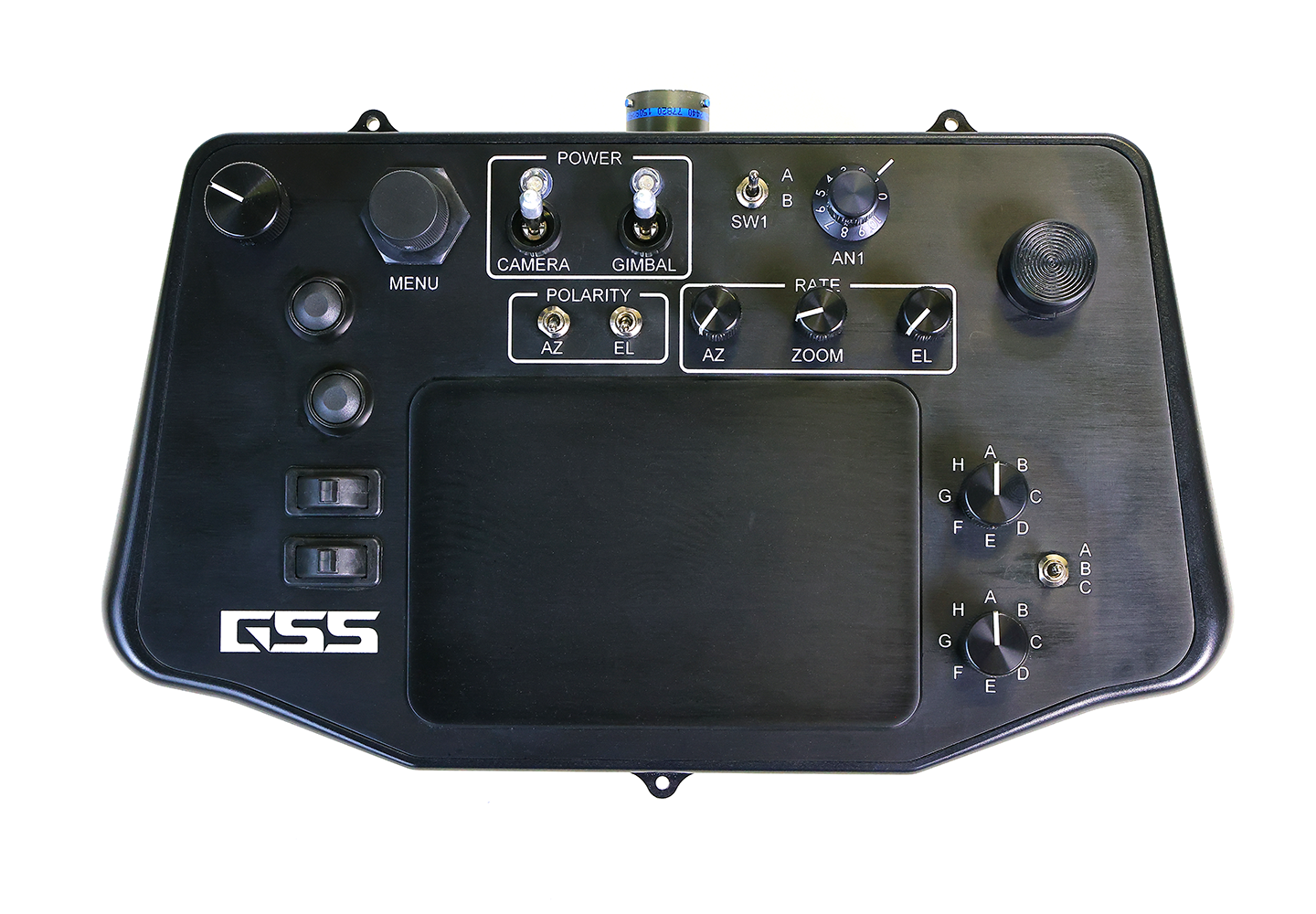

hand controller

AIRCRAFT BATTERY disruption unit

vibration iso (taper)

vibration iso (universal)

R44 Mount

GIMBAL LEGS

R66 Mount



Four Sensor System

  • Digital Still Imager

  • HD Thermographic IR

  • 4K/HD Daylight Camera

  • Corona Camera or Gas Detection Sensor

Typical Flight Speed Range

  • 44-69Kv (35Knots) - 200-400 Ft AGL

  • 120-230Kv (45 Knots) - 400Ft AGL

  • 500KV (70-75 knots) - 500+ Ft AGL

Extremely Stable

  • 200 knots + with long focal length

    • Fixed wing aircraft

    • Helicopters

    • Heavy lift UAV

System Specs

Gimbal Performance
4-axis gimbal - gyro-stabilized
Azimuth: 360° continuous
Elevation: 15° to -180° from horizontal
Gimbal slew rate: 0-100°/second (depending on gearbox)
Max operational airspeed: 200 kts - variable depending on gearbox

Interface
Control: RS-232, RS-422, or Ethernet

Electrical
VIN: 18-33 VDC
Power: 15 amps max draw at 28 VDC

Dimensions
Gimbal width: 17.4 inches (442 mm)
Gimbal height: 23 inches (584 mm)
Cable set length: 20 feet (standard set)

Weight
Platform: 90 lbs (41 kg) with payload
Hand Controller Unit: 7 lbs (3.2 kg)
Auxiliary Junction Unit: 3.5 lbs (1.6 kg)
Cable Set: 8 lbs (3.6 kg)

Environmental
Operating temperature: -4° to +122°F (-20° to +50°C) Sealed system for airborne/ground/marine applications

Helicopter/Airplane Mount Availability
AS 350/355
Bell 206/206L/407/505
EC-120
Robinson R44/R66
Cessna 172/206
(Compatible with various other aircraft)

Specifications are subject to change.
